my sump - 鬧市冰室

» 鬧市冰室 » Misc. Equipment ◇其它器材◇ 顯示適合列印的版本寄給朋友

主題被移動

這篇主題已經被移動過，原來的討論板是 Marine Creature ◇海水生物飼養討論◇ - iczfirz, 2002-05-15 23:24
如果您不明白為什么會被移動，請參考一下本板公告或者聯系本板板主。

作者

my sump

mirrorguy

文章: 45

1 于 2002-05-14 15:04

I would like to make the following sump for my 40" FO tank. Please tell me your opinion(s). Thanks a lot in advance!!!

7194-sump.pdf

文章: 2537

2 于 2002-05-14 16:01

How can you be sure that the water output of your canister filter is the same as the powerhead?

What I mean is -
If water output of canister > powerhead
water will be drawn from the main tank to the sump and cumulate there leading to overflow of the sump.

It water output of canister < powerhead
sump water will be drawn away and the powerhead is running without water and it will be damaged.

Another point is the second partition is too high and water level has to rise up so that the bio-balls will soak in water. It is undesirable.

LC 修改于 2002-05-14 20:51

iczfirz

"challenge"

文章: 14187
來自: 我回來了

3 于 2002-05-14 16:08

買一個Overflow Box啦..

^{問題或承受過不相信拋下過最後決定一雙肩膊別太肩膊
三十一畫：此數大吉，名利雙收，漸進向上，大業成就。（吉）}

kenreef

文章: 52
來自: Clear Water Bay

4 于 2002-05-14 18:19

Agree with LC. It wouldn't work at all and it will risk of burning the canister filter or overflowing.

BTW, I have a new overflow box from CPR. Similar in design of Schuran but cheaper. Check it out:

http://www.aquarium.org.hk/cgi-bin/ch/topic_show.cgi?id=922&h=1&bpg=1&age=0

kenreef 修改于 2002-05-14 18:21

Gundaman

文章: 750

5 于 2002-05-15 08:55

mirrorguy,

You can try to drill a hole by yourself. From Cody's description, it seems easy and practical. But I never have a try.

我覺得最好搵D冇用的玻璃來熟下手先, 除非你係Cody等高手, haha.個缸得一次機會轉ga jar.

Cody is an expert in drilling glass (ref: http://calvinchiu.ufnec.com/vbb/showthread.php?s=&threadid=2195)

Cody, please come in and discuss.

Gundaman 修改于 2002-05-15 08:56

wwlworld

文章: 532

6 于 2002-05-15 21:53

Use of canister to drive water to sump is no good because the water flow speed of canister is not the same as return pump. You will only end up with one outcome - water flooding the floor.

Water flow:
canister > sump return pump - sump will be flooded
sump return pump > canister - tank will be flooded
Both end up water on the floor.

It is impossible to synchronize (make identical) the water flow of canister and sump return pump. Motors will deteriate in performance over time.

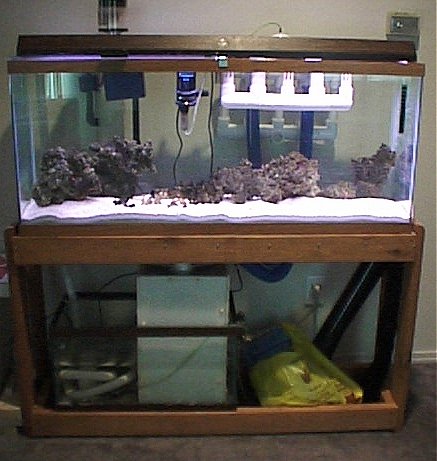

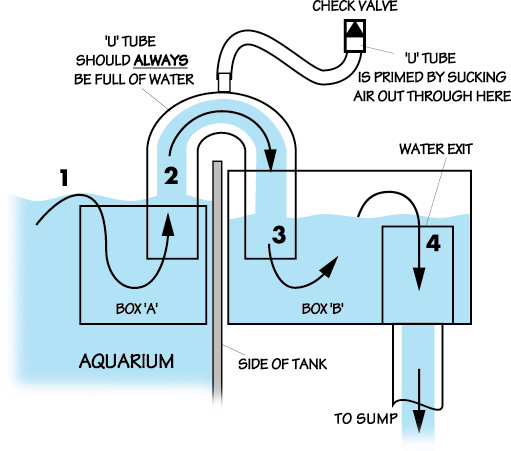

Use overflow box (this picture was downloaded from a post in Reef Central)
